Worx Landroid Battery Replacement: When and How to Do It

Runtime Dropping Season Over Season? That's Wear, Not a Fault

There's a version of this problem that never throws an error code. The Landroid charges, docks, and mows perfectly well — it just can't stay out as long as it used to. A lawn it finished in one run two summers ago now takes two, with a long sulk on the dock in between.

That's ordinary lithium aging, and it's the one Landroid symptom a new pack genuinely fixes. If yours won't charge at all, or the base station's status light is dead, that's a contacts, alignment, or power-supply issue instead — our Worx Landroid won't-charge guide walks that path, and a healthy new battery won't rescue a dead dock.

Set aside half an hour, a Torx driver, and a genuine Worx pack.

---

Try This First (5 Minutes)

• Compare today's runtime against what the app logged last season, not against the number on the box
• Note whether the mower stops with a low-battery message or just returns on its normal schedule
• Look under the deck for packed clippings — drag burns runtime and mimics a tired pack convincingly
• Check the blades, since dull edges make the cutting motor pull far more current than it should
• Confirm nobody has quietly shortened the mowing window in the app

---

Fix 1: Rule Out the Cheap Causes Before You Buy Anything (Works Around 30% of the Time)

Long grass, a clogged deck, and worn blades all shorten a run in exactly the way a dying battery does. I've watched people order a replacement pack for what turned out to be a matted underside.

Safety note: Power off at the main switch and slide the battery out before reaching near the blade disc.

How to Fix:

1. Power off, remove the battery, and tip the mower onto grass or a folded towel
2. Scrape packed clippings off the deck and out of the wheel housings
3. Replace the blades if the cutting edges are rounded, chipped, or bent
4. Reinstall the pack, charge to full, and run one complete cycle unchanged
5. Compare that run against the app's earlier history

Time: 20-30 minutes | Cost: Free, or $10-20 for a set of blades | Success Rate: ~30% | Difficulty: Easy

Our Worx Landroid blade replacement guide covers when blades are done and how to swap them.

If this doesn't work: Short runtime after a clean deck and fresh blades points at the pack. Move to Fix 2.

---

Fix 2: Separate Real Wear From Cold-Weather Capacity Loss (Works Around 15% of the Time)

Lithium packs deliver noticeably less in the cold. A healthy Landroid battery can lose a real chunk of its usable runtime in early spring, then quietly return to normal by June. Replacing a pack in April on April numbers is a common and expensive mistake.

How to Fix:

1. Note the outdoor temperature during the short runs
2. Charge somewhere above about 50°F (10°C) and run the mower on a mild day
3. Check whether runtime recovers on that warmer run
4. If the pack sat discharged all winter, give it two or three full cycles before judging it

Time: A day or two of normal use | Cost: Free | Success Rate: ~15% | Difficulty: Easy

If this doesn't work: Runtime that stays short on a warm day is genuine capacity loss. Move to Fix 3.

---

Fix 3: Identify the Exact Pack Your Landroid Takes (Required Step)

Worx uses removable Power Share lithium packs across most of the Landroid range, but capacity and physical size vary by model. The only reliable source is the label on the pack you already own — not a search result.

How to Fix:

1. Power off and slide the existing battery out of its compartment
2. Read the part number, voltage, and amp-hour rating on the label
3. Cross-check against the model plate on the underside of the mower
4. Order a matching genuine pack rather than assuming a bigger one will fit

Time: 5 minutes | Cost: Free | Difficulty: Easy

Model notes: Wire-based Landroids like the WR147 and M700 use a compartment reached from the underside or a chassis hatch, while Landroid Vision (M500) packs more sensor hardware into the same footprint — confirm your model's layout in the manual first.

Pro tip: Photograph the label. Half the ordering mistakes I see come from typing a part number from memory.

---

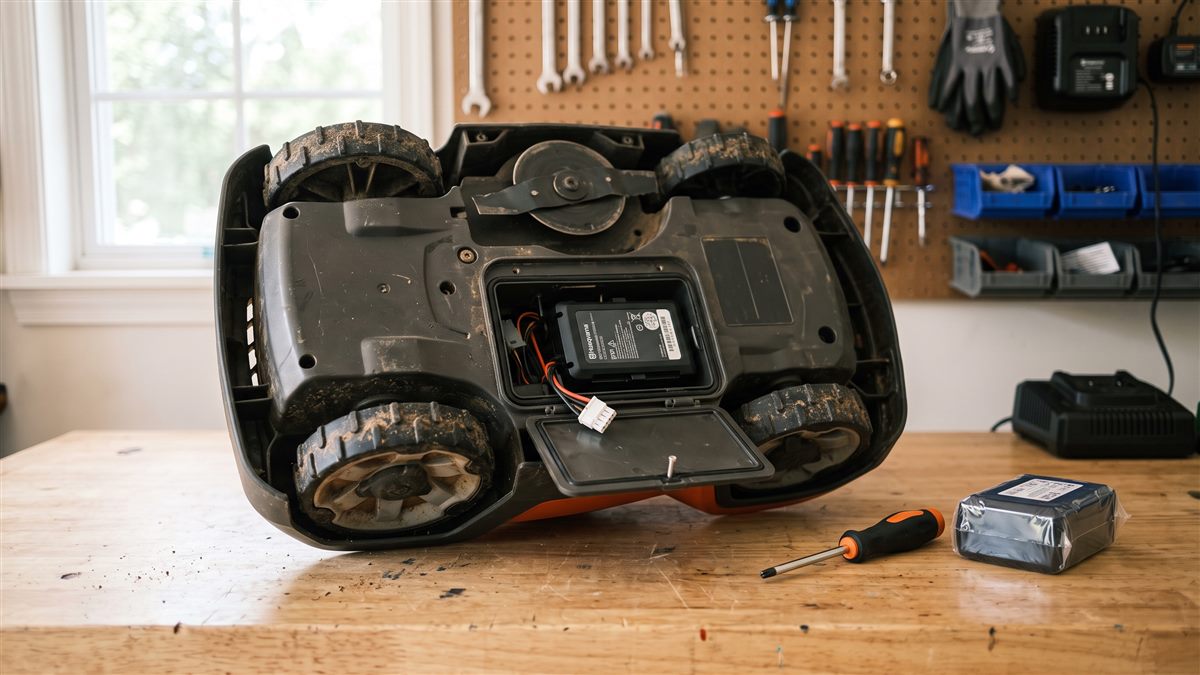

Fix 4: Replace the Pack on Wire-Based Landroids (Works Around 85% of the Time)

Safety note: Power off at the main switch and keep your hands clear of the blade disc for the whole procedure.

How to Fix:

1. Power the mower off and move it to a dry bench or table
2. Turn it over onto a soft surface so the deck isn't resting on bare wood
3. Remove the compartment cover screws with the correct Torx bit — don't force a wrong size
4. Unclip the battery connector rather than pulling on the wires
5. Lift the old pack out and seat the new one in the same orientation
6. Reconnect until it clicks, refit the cover, and tighten the screws snug rather than hard
7. Power on and confirm the mower reports a charge level

Time: 15-25 minutes | Cost: $80-150 for a genuine pack | Success Rate: ~85% | Difficulty: Easy

Pro tip: Photograph the connector orientation before you unplug it. Small detail, easy one to get backwards.

If this doesn't work: A mower that still won't hold a charge with a brand-new pack has a charging or board-level fault.

---

Fix 5: Replace the Pack on Landroid Vision (Works Around 80% of the Time)

Vision models run a camera and its processing continuously while mowing, so they draw a different power profile than a wire-following Landroid. Capacity matters more here, and a full power-down ends the current mapping session.

How to Fix:

1. Power off and let the mower sit for a minute before opening anything
2. Follow the same compartment-and-connector sequence, keeping the camera housing clear of the bench edge
3. Fit a genuine, correctly rated pack — an underrated cell shows up as early returns to the dock
4. Power on and let the mower re-establish its position rather than carrying it somewhere random
5. Run one supervised cycle before trusting the schedule again

Time: 20-30 minutes | Cost: $100-180 for a genuine pack | Success Rate: ~80% | Difficulty: Moderate

Our Worx Landroid Vision camera navigation guide covers what to do if it starts wandering after that first restart.

---

When DIY Won't Work - Repair vs Replace

If a new genuine pack behaves exactly like the old one — short runs, early returns, a low-battery message halfway through — the fault sits upstream of the battery. That usually means the charging circuit on the control board or the base station's power supply, and neither is a driveway repair.

A replacement pack runs roughly $80-180. A board-level repair typically lands north of that once labour is counted, and on an older Landroid it can approach the price of a current model. If the mower needs both after five or six seasons, replacing it is usually the better call.

Check your warranty before opening anything — Worx terms differ between the mower and the battery, and the battery is often covered for a shorter period.

---

Getting More Seasons Out of the Next Pack

• Store the mower fully charged over winter in a dry frost-free space, not half-empty in a cold shed
• Give the pack a top-up charge midwinter if it's going to sit for months
• Keep the base station out of direct afternoon sun — heat ages lithium faster than use does
• Clean the deck weekly in the growing season so the motors aren't fighting drag
• Replace blades on schedule and raise the cutting height during a growth surge, rather than forcing full-depth cuts on dull edges

Our Worx Landroid winterizing guide covers the storage side of that list in full, including the Vision-specific steps.

---

FAQ

How long should a Landroid battery actually last?

Most owners get somewhere between three and five mowing seasons before the drop in runtime becomes annoying. Heat, deep discharges, and winters spent at a low charge all shorten that.

Is a third-party battery worth the savings?

Rarely. The packs that fail early are almost always the cheap ones, and a mismatched cell chemistry in a weather-exposed machine is a genuine safety consideration, not just a performance one.

Can I fit a higher-capacity pack for longer runs?

Only if Worx lists it as compatible with your model. The compartment is sized for a specific pack and the charging circuit is tuned to a specific capacity, so forcing a bigger one in isn't a free upgrade.

My mower returns early but the app shows a full charge. Battery or something else?

That pattern often points at a pack reporting capacity it can no longer deliver, but check the deck and blades first — mechanical drag produces the same behaviour.

Does replacing the battery myself void the warranty?

It can, depending on your region's terms and whether the compartment is treated as user-serviceable on your model. If the mower is still in warranty, contact Worx before you pick up a screwdriver.
